waveshare ESP32-S3 1.69inch Touch Display Development Board, 240¨G280 Pixels, Micro LCD Display with ESP32-S3, 262K Color, Compact Size, Accelerometer and Gyroscope Sensor

waveshare ESP32-S3 1.69inch Touch Display Development Board, 240¨G280 Pixels, Micro LCD Display with ESP32-S3, 262K Color, Compact Size, Accelerometer and Gyroscope Sensor

Name: waveshare ESP32-S3 1.69inch Touch Display Development Board, 240¨G280 Pixels, Micro LCD Display with ESP32-S3, 262K Color, Compact Size, Accelerometer and Gyroscope Sensor
SKU: 5MP6OcsY
Availability: InStock

Original price was: $32.99.Current price is: $20.99.

good price waveshare ESP32-S3 1.69inch Touch Display Development Board, 240¨G280 Pixels, Micro LCD Display with ESP32-S3, 262K Color, Compact Size, Accelerometer and Gyroscope Sensor hot sale

746 in stock

SKU: 5MP6OcsY Categories: Electronics, Single Board Computers Tags: Accessories, Computer Components, Computers, Single Board Computers

Description
Reviews (0)

waveshare ESP32-S3 1.69inch Touch Display Development Board, 240¨G280 Pixels, Micro LCD Display with ESP32-S3, 262K Color, Compact Size, Accelerometer and Gyroscope Sensor

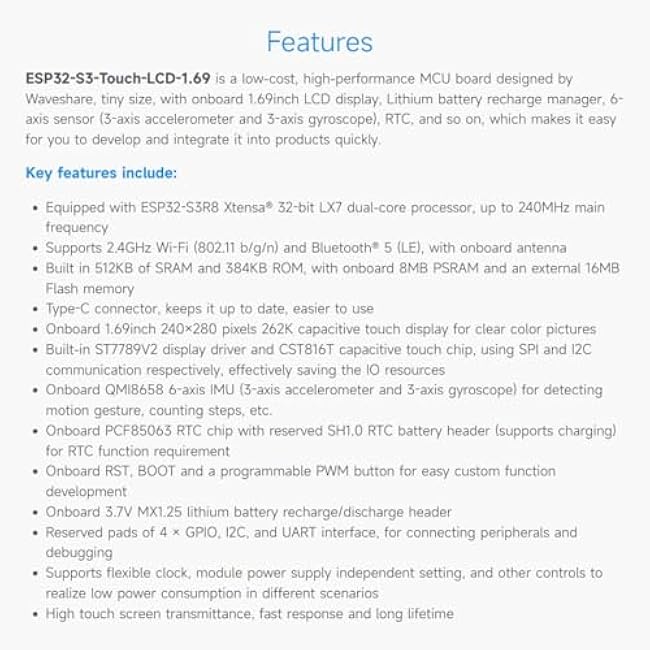

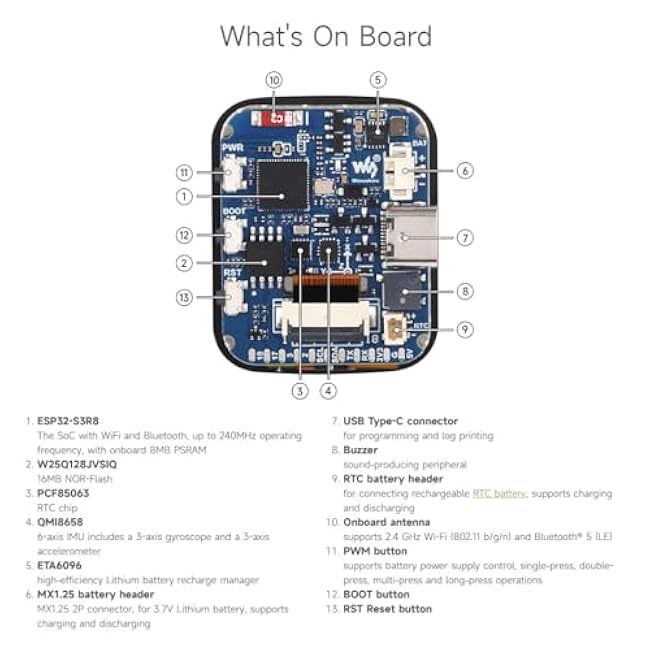

Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory Type-C connector, keeps it up to date, easier to use

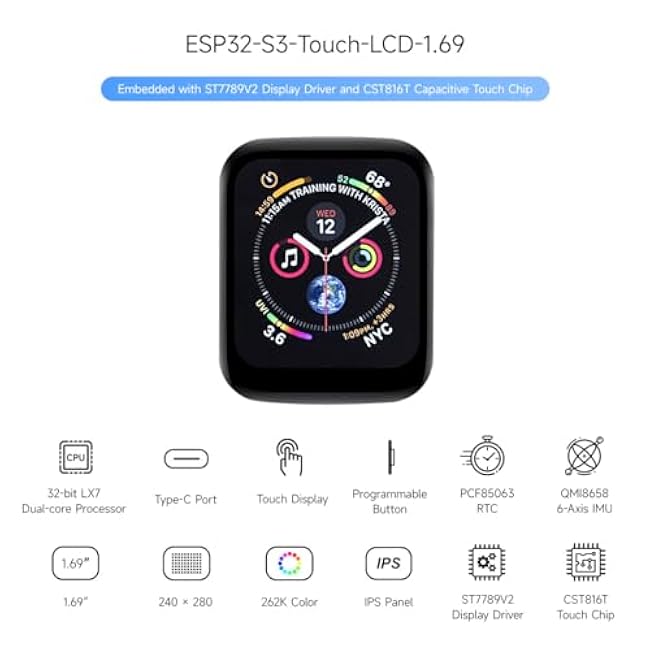

Onboard 1.69inch 240¨G280 pixels 262K capacitive touch display for clear color pictures Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources

Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement

Reserved pads of 4 ¨G GPIO, I2C, and UART interface, for connecting peripherals and debugging Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

High touch screen transmittance, fast response and long lifetime
